Best deal 👍 Mon Ster PZ19 Carburetor With 19 Mm Intake, Right Side Cable Choke, & Fuel Shut-Off Valve For 50cc, 70cc, & 90cc ATVs & Dirt Bikes ❤️

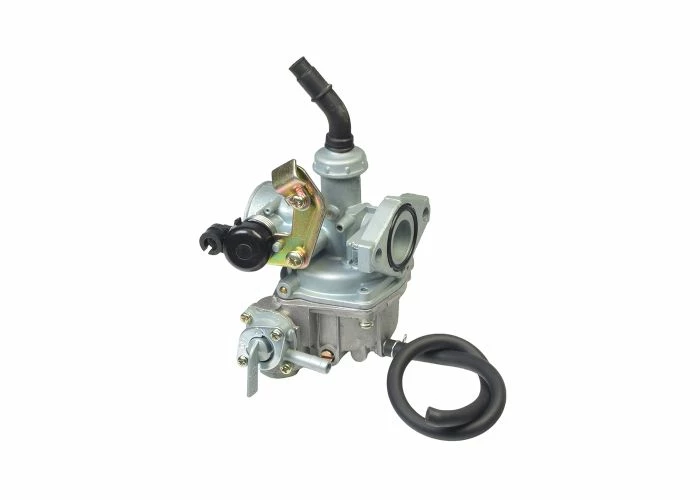

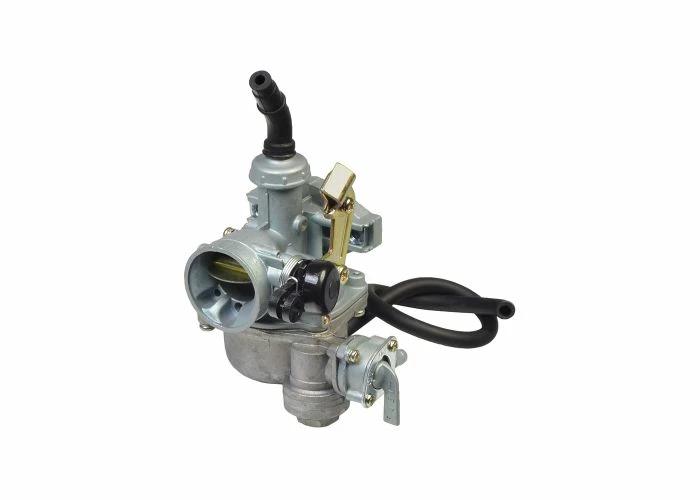

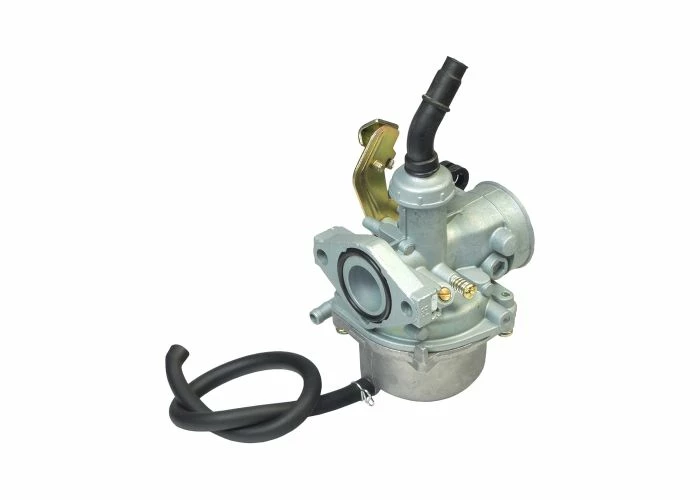

Our PZ19 carburetor with a right side manual cable-operated choke and fuel shut-off petcock is perfect for most 50cc, 70cc, and 90c ATVs, pocket bikes, and dirt bikes. This carburetor is a great choice for all of those “Honda Style” 4-stroke air cooled gas engines. The PZ19 carburetor is compatible with a variety of scooter, ATV, and dirt bike models, including the Honda Aero 50, Aero 80, Honda CRF50 dirt bikes, and Gyro scooters, and all of the Honda clone Chinese made dirt bike and scooters of these models. It is typically used on Honda style single cylinder engine sizes 50cc, 70cc, 90cc, but occasionally can be found on larger size engines.

But that’s not all! Monster Scooter Parts gives you a choice of configurations for this carb. You can order it either with or without a

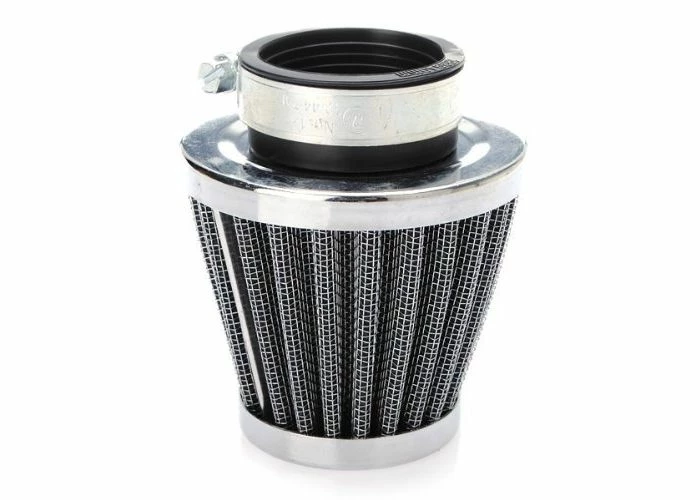

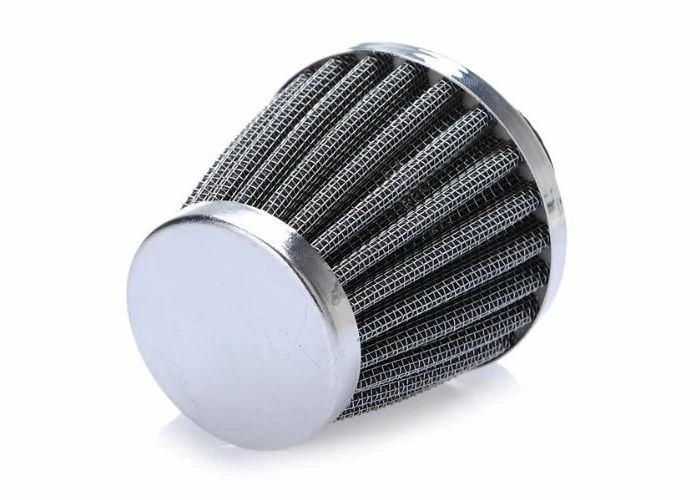

35mm Air Filter.

Do I need a PZ19 carburetor or a PZ22 carburetor?
If you are bewildered by the carburetor choices you are not alone. The PZ19 and PZ22 carbs are very similar; both carburetors sharing the same external physical dimensions, including a 48 mm mounting hole spacing. The only real difference is in the diameter of the engine-side intake; the PZ19 uses a 19 mm opening while the PZ22’s engine-side measures a nominal 22 mm. Both carburetors can be used on engines from 50cc up to 125cc.

So which is right for your machine? In general, the PZ19 is more common on 50cc, 70cc, and 90cc engines as these require a bit less power that their larger cousins. The PZ22 is a better choice if your engine is in the 110cc to 125cc class simply because it takes a larger dose of the gas/air mix to run the larger engine at peak performance. Although the PZ22 provides a bit more power, it comes at the cost of greater fuel consumption.

⚠ WARNING California Residents: Proposition 65 Warning

Engine Sizes: 50cc; 70cc; 90cc; 110cc; 125cc

Engine Intake Inner Diameter: 19 mm

Air Intake Outer Diameter: 36 mm

Air Intake Inner Diameter: 34 mm

Overall Depth: 7.1 cm

Overall Width: 10 cm

Overall Height: 13.5 cm

Center to Center Mounting Hole Distance: 48 mm

Mounting Holes Diameter: 5 mm

Choke: Manual

Fuel Line Length: 25 cm

Fuel Line Inner Diameter: 4 mm

Fuel Line Outer Diameter: 6 mm

Vacuum Hose Length: 18 mm

Vacuum Hose Inner Diameter: 6 mm

Vacuum Hose Outer Diameter: 8 mm

Drain: No

Fuel Shutoff: Yes
